Pin Top Insulator

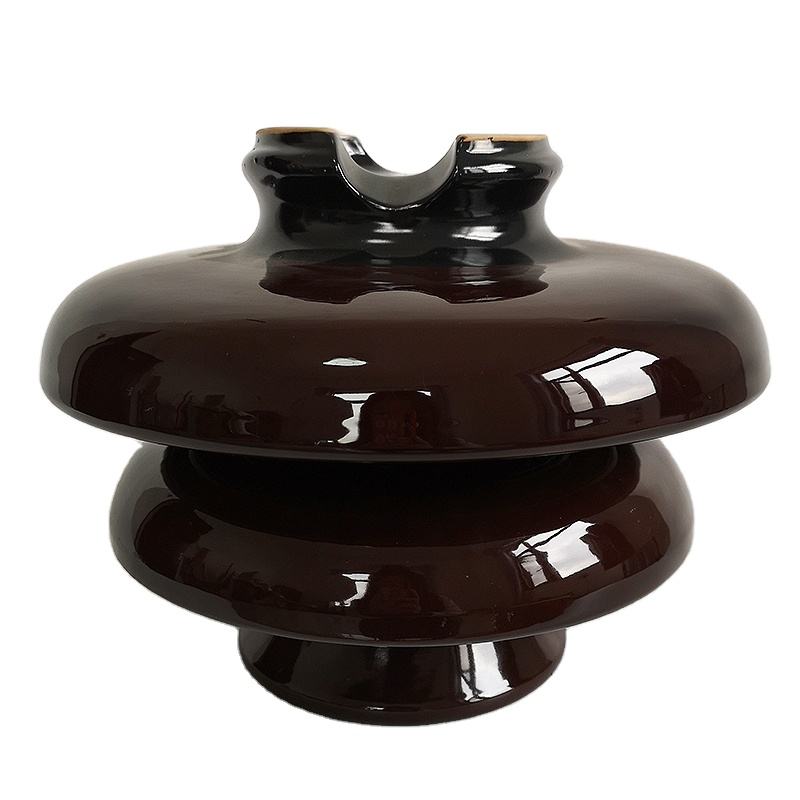

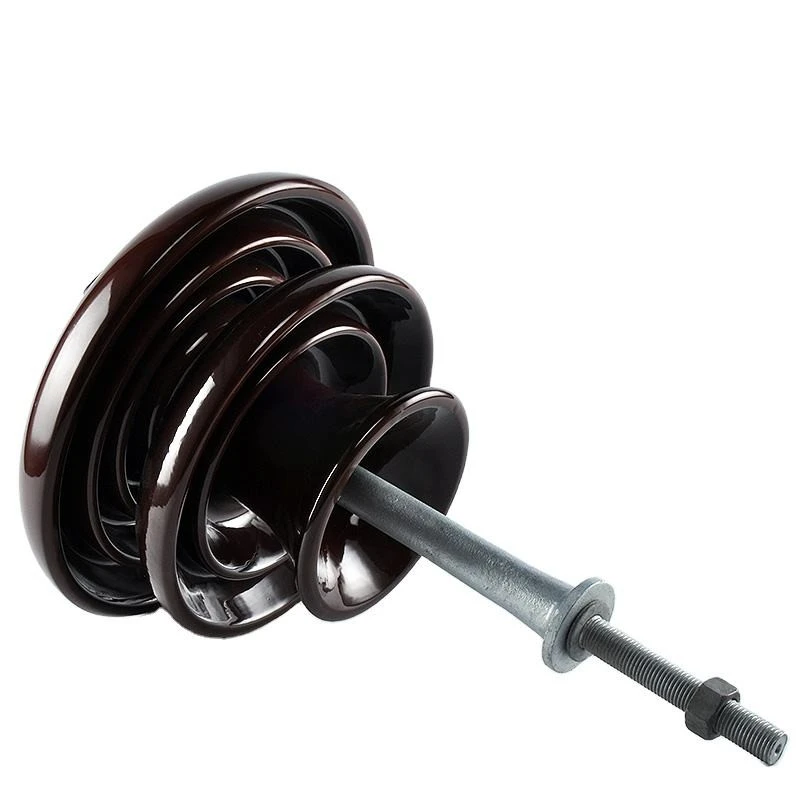

The Pin Top Insulator PW-33-Y is a top-pin model with a long creepage distance. Its rated voltage is 33 kV. The structure height is 320 mm, and the disc diameter is 240 mm. The mechanical failing load is 12 kN. This product complies with BS 137 and IEC 60383. The "W" indicates an anti-pollution design, while the "Y" indicates a long-shank design. The creepage distance reaches 900 mm, and the dry arcing distance is 419 mm. A 900 mm creepage distance is exceptionally long for this voltage class. This design is intended for overhead lines in heavily polluted areas. The top-pin structure provides stable conductor support and good resistance to wind loads. We use a high-alumina porcelain formula to improve both mechanical strength and voltage endurance. This Pin Top Insulator is used on 33 kV coastal industrial lines, in chemical plant areas, and along foggy mountain overhead line routes.

We focus closely on consistent product performance. Our factory uses an automated raw material batching system. Each ingredient ratio is accurately controlled. Our gas-fired tunnel kiln is equipped with a waste heat recovery system. This system helps reduce energy consumption and maintain uniform heating throughout the firing process. We regularly send products to national testing bodies for type testing to verify compliance with applicable standards. Our quality team also performs spot checks on each production batch. We conduct power frequency dry flashover and wet flashover tests as required. Our factory test reports record the actual test data for each batch. You are welcome to visit our factory at any time. We also support unannounced inspections by a third party of your choice. Our technical center can assist with insulation coordination for your overhead lines and calculate the required creepage distance based on your application conditions.

The minimum order quantity is flexible. New mold costs are negotiable. We can refund the mold fee when your formal order reaches the agreed quantity. Production video updates are provided as part of our regular service. You can follow the production process from forming to packing. We pack the products on reinforced wooden pallets and secure them with steel straps. This packaging provides reliable protection during long-distance sea transportation. The warranty period is 12 months after shipment. If you have special packaging requirements, such as the use of specified non-fumigation materials, we can arrange them accordingly. For this Pin Top Insulator, we recommend placing orders early because large models require a longer production cycle. Our team will keep you updated throughout each stage of the order.

All products support custom dimensions, voltage ratings, OEM/ODM services, and manufacturing based on drawings.
